:dart: Project Overview

Leak Proof CMap is a framework for the training and evaluation of phenotypic similarity methods using the Connectivity Map (CMap) L1000 transcriptomic dataset.
It establishes the most rigorous leak-proof data splitting regime reported to date, ensuring unbiased benchmarking and fair comparison of similarity methods across novel cell lines and novel mechanisms of action (MOAs).

:gear: Technical Implementation

alt text

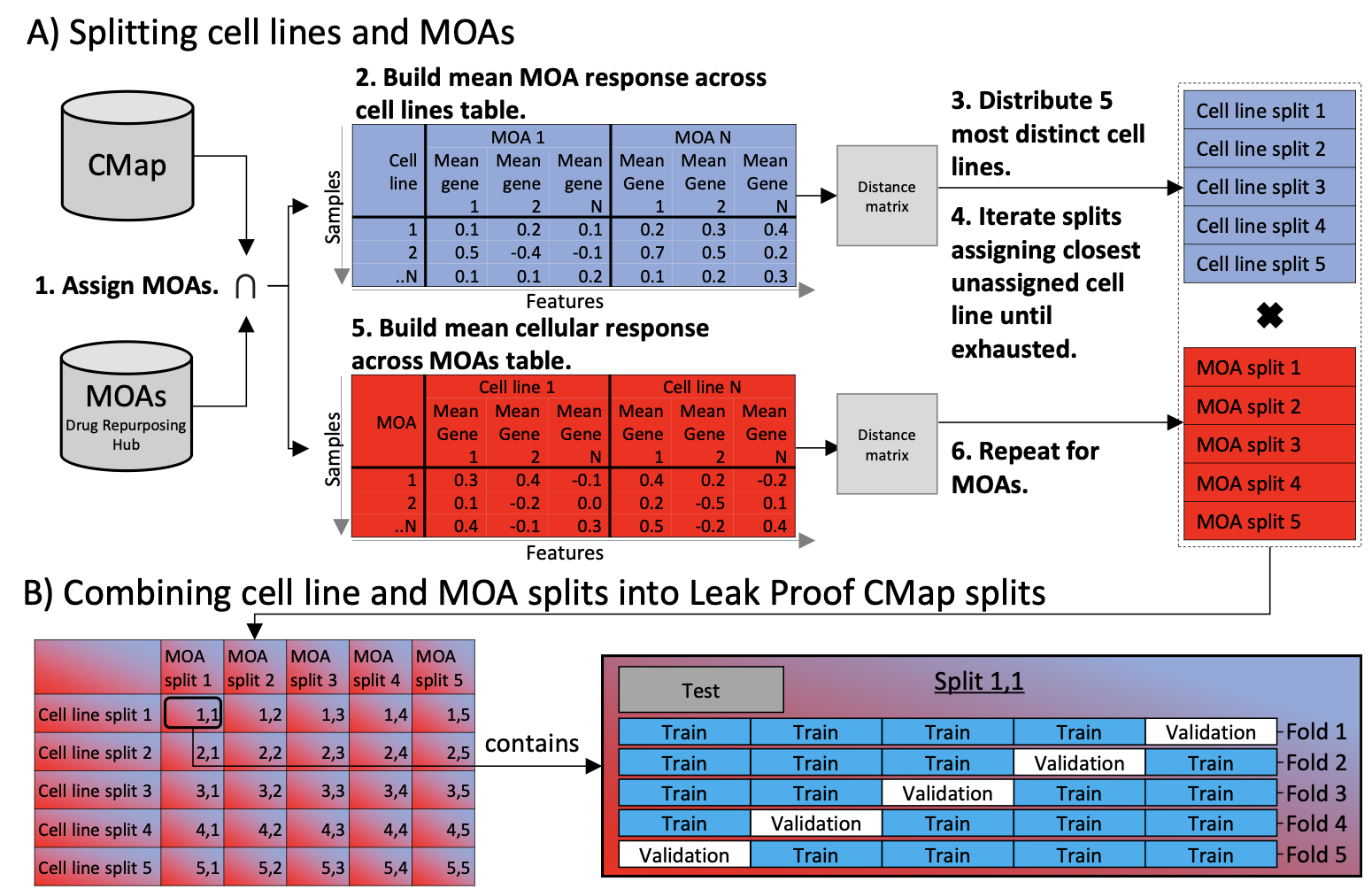

Leak Proof CMap split strategy: independent cell line and MOA splits combined into 25 leak-proof benchmark sets.

:rocket: Key Features

  1. Leak-Proof Data Splits
    • Five diverse cell line splits and five MOA splits combined into 25 benchmark sets.
    • Prevents information leakage between train/validation/test, mimicking deployment on unseen treatments.
  2. Benchmarking Tasks
    • Compactness → percent replicating metric (how tightly replicates cluster).
    • Distinctness → permutation testing vs DMSO (hit calling).
    • Uniqueness → AUROC (retrieval of correct replicates across large datasets).
  3. Method Evaluation
    • Classical metrics: Spearman Rank, Zhang, cosine, Euclidean, Euclidean-PCA.
    • AI/ML method: Triplet-loss neural network embedding into 128D latent space.
    • Triplet-loss significantly outperformed others in compactness and uniqueness, setting a new benchmark for similarity-based MOA discovery.
  4. Open-Source Tooling
    • Python package: leakproofcmap
    • Includes dataset preparation, splitting routines, and benchmarking pipelines.

:microscope: Case Studies

  1. Novel Cell Line Generalization
    • Models evaluated on entirely unseen cell lines.
    • Triplet-loss embeddings remained robust, showing potential for patient-derived samples.
  2. Unbiased MOA Prediction
    • Evaluation with 433 MOAs and 1,309 compounds across 30 cell lines (~177k profiles).
    • Demonstrated reliable recovery of mechanisms even under strict leak-proof regimes.
  3. Hit Calling in Drug Discovery
    • Distinctness benchmark highlighted Euclidean-PCA as the most effective metric for hit vs control separation.
    • Supports early-stage high-throughput screening campaigns.

:books: Documentation & Resources

Read Paper
